CE-5800-HVE Replacement Parts

1-1

11271020500

Fully enclosed upper guard

1

individual

1-2

9425100020672

wide angle belt

1

individual

1-3

9425100020600

wide angle belt

1

individual

1-4

11271020600

Fully enclosed lower guard

1

individual

1-5

11111030004

Embossed wheel seat

1

individual

1-6

A111110307 square bearing housing assembly

9105200602011 deep groove ball bearing

2

individual

6201 2Z

1-7

Square bearing

1

individual

1-8

11111030003B

Embossing wheel

1

individual

1-9

11211030028

rubber axle

1

individual

1-10

11111030100

Rubber wheel assembly

1

individual

1-11

9746016400032

retaining ring for hole

1

individual

Ф 32mm

1-12

9105200602011

Deep Groove Ball Bearings

1

individual

6201 2Z

1-13

11111030018

rubber wheel cover

1

individual

1-14

9746036400012

shaft retaining ring

2

individual

Ф12mm _

1-15

11111030022

Drive pulley shaft

2

individual

1-16

11271030019

Drive pulley

2

individual

1-17

A113110101

Universal joint assembly

1

individual

1-18

11271040031

Fully enclosed lower guard struts

3

individual

1-19

11311030002

tension pulley

1

individual

1-20

11111030001

small pulley

3

individual

1-21

9105200600062

Deep Groove Ball Bearings

4

individual

606-2Z

1-22

9746016400017

retaining ring for hole

4

individual

Ф17mm _

1-23

11271030002

small pulley shaft

4

individual

1-24

9103101211060

driven wheel seat spring

1

individual

1-25

11111030006

spring seat

1

individual

1-26

11111030008

feet

1

individual

1-27

9100402143052T

Five-star handle (casting)

1

individual

1-28

11271090005

Inkjet printer guide plate

1

individual

1-29

11271090010

jetting pad

1

individual

1-30

9230210400017

Jetting terminal (for right-entry machine)

1

individual

1-31

11271040600

case back cover

1

individual

1-32

11111040015S

Door Latch

2

individual

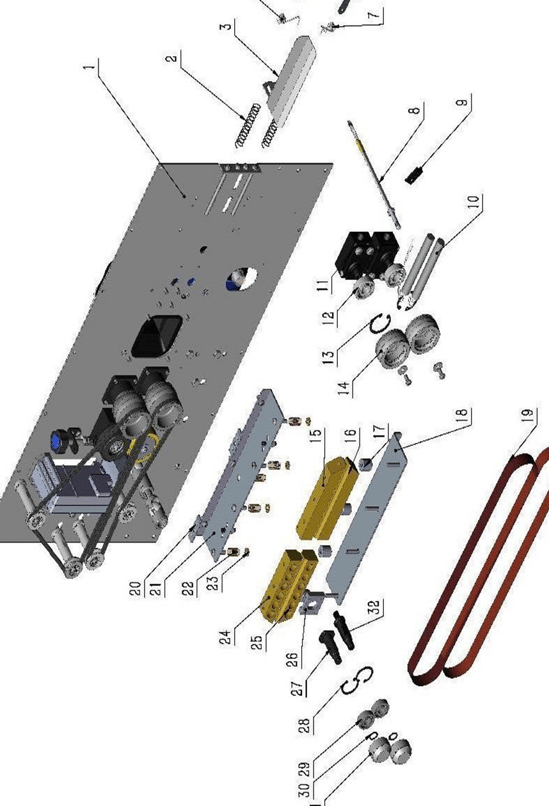

2-1

11271030039

Bottom plate

1

individual

2-2

9103101211060

driven wheel seat spring

2

individual

2-3

11311030029

Inlet

1

individual

2-4

11101020016A

Compression torsion spring (upper)

1

individual

2-5

11101020017AS

Tablet (on)

1

individual

2-6

11101020017BS

Tablet (below)

1

individual

2-7

11101020016B

Compression torsion spring (lower)

1

individual

2-8

9241100010350

thermocouple

1

individual

2-9

11111030042S

Thermocouple base plate

1

individual

2-10

9240112123005

Heater

2

individual

2-11

11111030200

driven wheel seat

2

individual

2-12

A111110303 driven wheel assembly

9105200602012 deep groove ball bearing

2

individual

6201-2RS

2-13

9746016400032 retaining ring for holes

2

individual

Ф32mm

2-14

driven wheel

2

individual

2-15

9161101113201S

upper heating block

1

individual

2-16

9161101113201X

lower heating block

1

individual

2-17

11111030031

copper pad

4

individual

2-18

11311030036S

Lower pallet

1

individual

2-19

9430113081015

sealing tape

2

individual

2-20

11111030011

stop film

2

individual

2-21

11311030012S

Upper pallet assembly

1

individual

2-22

9103101010025S

copper block spring

5

individual

2-23

9161100111001

Copper block spring seat

4

individual

2-24

9161102113201S

upper cooling block

1

individual

2-25

9161102113201X

lower cooling block

1

individual

2-26

11111030014

Roller slider

1

individual

2-27

11311030014

Upper roller shaft

1

individual

2-28

9746016400026

retaining ring for hole

2

individual

Ф26mm

2-29

9105200601002

Deep Groove Ball Bearings

2

individual

6000-2Z

2-30

9746036400010

shaft retaining ring

2

individual

Ф10mm

2-31

11311030035

Pressure wheel

2

individual

2-32

11311030034

Press down axle

1

individual

serial

number

ERP

name

quantity

unit

Remark

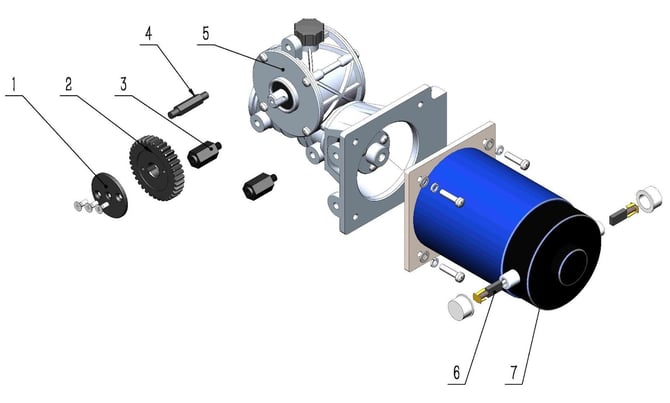

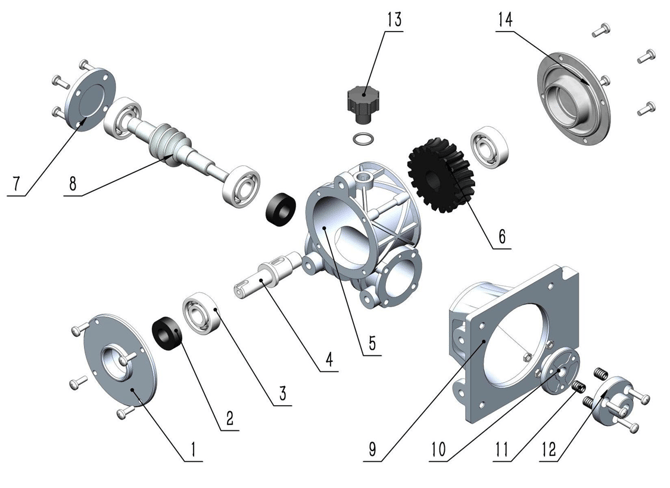

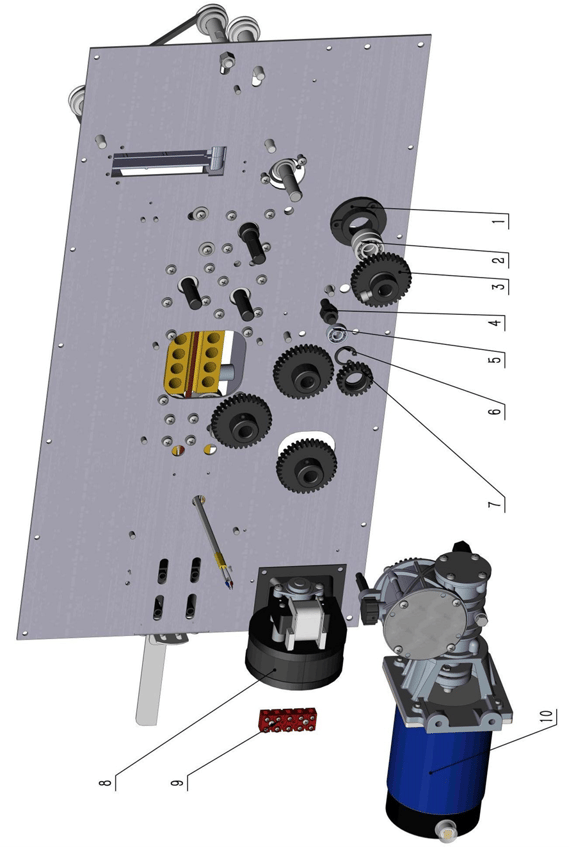

5-1

11311050005

Worm gear box output gear cover

1

individual

5-2

11311050004-35

Worm shaft output gear

1

individual

5-3

11311050007.31

Worm gear box spacer

2

individual

5-4

11311050007.42

Worm gear box spacer I

1

individual

5-5

Attached picture

Worm Gear Box Assembly

1

individual

5-6

9210200340818

Motor carbon brush

2

individual

5-7

9220115000505

Vertical DC Motor

1

individual

6-1

9422112180136

conveyor

1

individual

6-2

11111010009K

conveyor belt adjustment block

2

individual

6-3

9715051105055

Equal length stud

2

individual

6-4

9100401130520

Corrugated handle

2

individual

6-5

9746036400012

shaft retaining ring

6

individual

Ф12mm _

6-6

9105200602011

Deep Groove Ball Bearings

2

individual

6201 Z

6-7

11111010102

rear roller bearing housing

2

individual

6-8

11111010008

Conveyor rear axle

1

individual

6-9

11111010101

rear roller

1

individual

6-10

11111010001AS

work table

1

individual

6-11

A111110906

Five-star handle assembly

4

individual

6-12

9712011208165

Round head square neck bolts

2

individual

6-13

11111010010S

Conveyor table support

2

individual

6-14

11311010011S-HL

conveyor table

1

individual

6-15

11111010004A

Spacer

2

individual

6-16

11311010015

Axis backing plate

1

individual

6-17

11111010002

Front roller shaft bearing housing

1

individual

6-18

9105200601012

Deep Groove Ball Bearings

3

individual

6001-2Z

6-19

11311010012

Conveyor axis

1

individual

6-20

11111010005

conveyor sprocket

2

individual

6-21

7-21 _

A111110107 Three-eye bearing seat assembly

1

individual

7-18 _

6-22

9104101106062

3 point chain

1

individual

6-23

7-23

A111110105 Two-eye bearing seat assembly

2

individual

7-18 _

9746016400028 retaining ring for the hole (Ф 28mm )

6-24

11111010003

front roller

1

individual

6-25

11111010006-D2

Conveyor front axle

1

individual

serial

number

ERP

name

quantity

unit

Remark

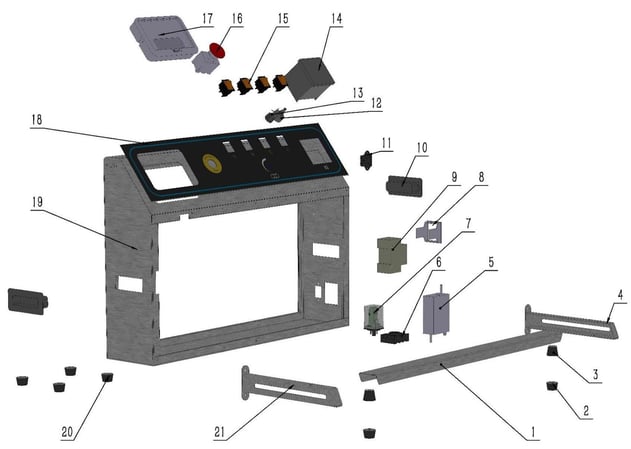

7-1

11311040007S

rung

1

individual

7-2

9400101000025T2

rubber feet

2

individual

7-3

9450101111002

rubber feet

2

individual

7-4

11111040006BS

foot (right)

1

individual

7-5

9310101035125

switching power supply

1

individual

7-6

9210110080042

Relay holder

1

individual

7-7

9310121111030T

Speed control circuit board assembly

1

individual

7-8

9100511030003

High breaking bracket

1

individual

7-9

9212711602005

Miniature Circuit Breaker

1

individual

7-10

9450101111006

handle seat

2

individual

7-11

9201111031002

Pin-shaped socket

1

individual

7-12

9300112522200

Carbon film potentiometer

1

individual

7-13

9210200100011

knob

1

individual

7-14

9241131410641T

Digital temperature controller

1

individual

7-15

9212240140442

Springboard switch (square)

4

individual

7-16

9212232025600

Emergency stop switch

1

individual

7-17

9230210400006

inkjet printer touch screen

1

individual

7-18

9160101112715

PVC panel paper

1

individual

7-19

11271040100

chassis

1

individual

7-20

9400101000025T

rubber feet

4

individual

7-21

11111040006AS

foot (left)

1

individual
